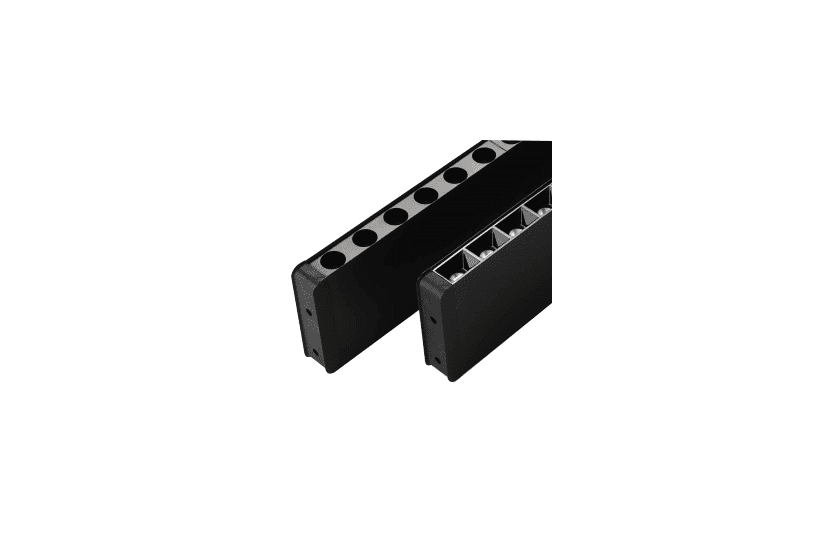

Linear Magnetic Track Light Series
FM-BGD-FX1770
Linear Magnetic Track Light Series · Hanging
- Watt
- 48+9W
- Lumen
- /
- Beam
- Lens: 15/24/40° Reflective: 24° Bottom: 110°
- Size
- 17.5×70×1200mm
- Cutout
- /
- IP
- 20
Specifications
Technical data
- Housting
- Extruded Aluminium
- Code
- FM-BGD-FX1770
- Name
- Linear Magnetic Track Light Series
- Size
- 17.5×70×1200mm
- Aluminium Colour
- Oxidation Black White
- Optical
- Lens Reflective PC
- End Cap
- Aluminium
- Applicable power
- 48+9W
- Tilting
- Fixed Not Adjustable
- PCB Size
- 15mm Bottom:5mm
- Beam Of Angle
- Lens: 15/24/40° Reflective: 24° Bottom: 110°
- Light Source
- LED SMD LED
- UGR
- 16
- IP
- 20
- Light Distribution
- Symmitric
- Installation
- Hanging
