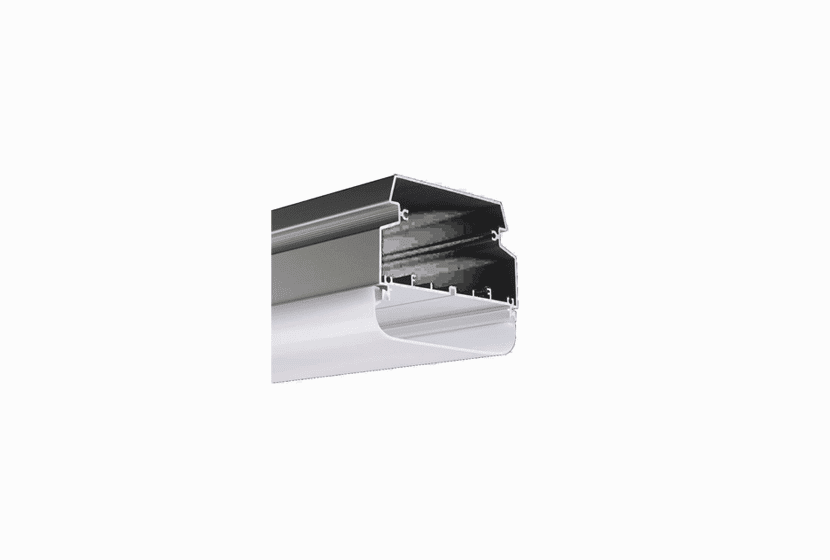

Linear Magnetic Track Light Series
FM-BGD-P90
Linear Magnetic Track Light Series · Hanging Ceiling
- Watt
- 70/100/140W
- Lumen
- /
- Beam
- 160°
- Size
- 600/1200/1500×90×75mm
- Cutout
- /
- IP
- IP:65/IK:08
Specifications
Technical data
- Housting
- Extruded Aluminium
- Code
- FM-BGD-P90
- Name
- Linear Magnetic Track Light Series
- Size
- 600/1200/1500×90×75mm
- Aluminium Colour
- Oxidation Black White
- Optical
- PC
- End Cap
- ABC
- Applicable power
- 70/100/140W
- Tilting
- Fixed Not Adjustable
- PCB Size
- 565/1165/1465×77.5×1.2mm
- Beam Of Angle
- 160°
- Light Source
- LED SMD LED
- Breathing Valve
- M6
- IP IK
- IP:65/IK:08
- Light Distribution
- Symmitric
- Installation
- Hanging Ceiling
