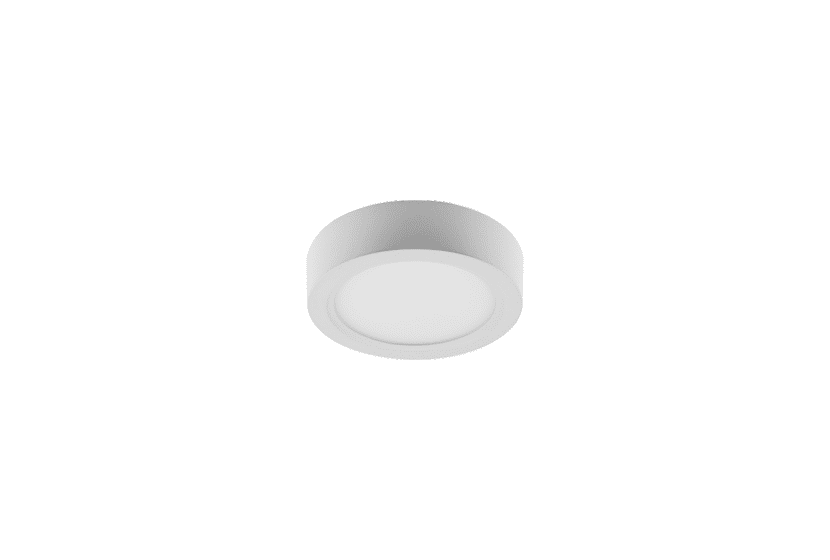

FSS623
FSS623S-E
30W · 120°
Emergency Light Series
FSS623R-E
Emergency Light Series · Surface Mounted
- Watt
- 36W
- Lumen
- 2880Lm
- Beam
- 120°
- Size
- ∅300×H45mm
- Cutout
- ∅20mm
- IP
- 20
Specifications
Technical data
- Code
- FSS623R-E
- Name
- Emergency Light Series
- LED Type
- SMD
- Driver
- FIAM Driver
- Luminous Flux
- 2880Lm
- Finish
- white/Black
- Size
- ∅300×H45mm
- Cutout
- ∅20mm
- Beam Angle
- 120°
- Color Temperature
- 3000K-6000K
- IP Classification
- 20
- Dimmable
- NO
- Installation
- Surface Mounted
- Operating Temperature
- -20°C till+40°C
- Life Time
- 50,000hrs
- Emergency Time
- 180Minutes. When emergency kit , power is 8-12W,lumen Output is 450lm .
