FWC323S-T-AX2
FWC323S-T-A-2X6
2X6W · 15/24/38/60°
FWC323S-T-A-2X20W
FWC323S-T-A-2X20

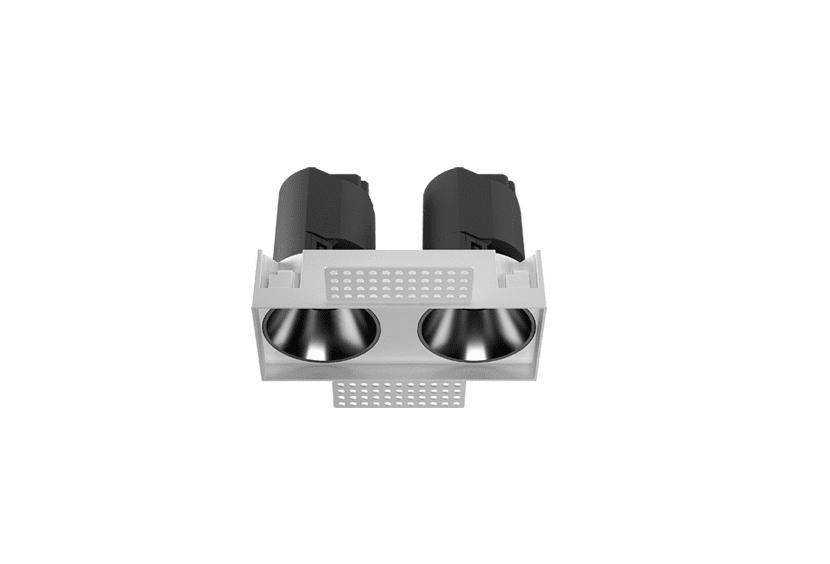

Trimless Series · Recessed downlight
- Watt
- 2X20W
- Lumen
- 2400Lm
- Beam
- 15/24/38/60°
- Size
- 223.5×109.5×H133.5mm
- Cutout
- 209×97mm
- IP
- 20
Specifications
Technical data
- Code
- FWC323S-T-A-2X20W
- Name
- Trimless Series
- LED Type
- COB
- Driver
- FIAM Driver
- Luminous Flux
- 2400Lm
- Finish
- white/Black
- Size
- 223.5×109.5×H133.5mm
- Cutout
- 209×97mm
- Beam Angle
- 15/24/38/60°
- Color Temperature
- 3000K-6000K
- IP Classification
- 20
- Dimmable
- NO
- Installation
- Recessed downlight
- Operating Temperature
- -20°C till+40°C
- Life Time
- 50,000hrs
